ICPE multi-source acoustic measurements: locate before treating
An industrial site subject to prefectoral decree may have up to ten simultaneously active noise sources. Acoustic measurements have already been carried out, and exceedances have been observed, yet the hierarchy of sources remains uncertain.
In this context, treatment without precise localization leads to poorly-targeted investments, sometimes considerable, for little or no regulatory gain. On multi-source ICPE sites, acoustic compliance depends above all on the quality of the initial diagnosis and the rigor of the analysis methodology.
Complex industrial sites under prefectoral decree
Installations classified for environmental protection (ICPE) are subject to acoustic regulations defined by the decree of January 23, 1997 and, for each site, by the prefectural operating decree. These texts set emission limit values at the property boundary and maximum permissible emergence levels in regulated emergence zones (ZER), differentiated between daytime and night-time periods.
On a complex production site – cement, chemicals, energy – noise sources multiply: compressors, cooling fans, conveyors, silos, machine traffic, unloading operations. Each contributes differently, depending on time of year, direction and distance. An exceedance observed in a night-time RZ may come from an unexpected source, distinct from those perceived as dominant during the day. Without rigorous identification, mitigation work misses its target and non-compliance persists despite the investment made.
It is precisely in this type of configuration – site under prefectoral decree, existing measures, but uncertain hierarchy of sources – that the intervention of an acoustics expert specialized in industrial acoustics takes on its full value.
Regulatory environmental acoustic measurements
The first phase of any intervention on a multi-source ICPE site consists in precisely qualifying the deviation from regulations, by period and by reception zone. Environmental acoustic measurements are carried out in accordance with standard NF S 31-010, using class I sound level meters approved and certified by the Laboratoire National d’Essai (LNE). Measurements are taken at the property boundary and in the identified ZERs, during the day and at night, according to the site’s production cycles.
Measurements are expressed in terms of average sound levels LAeq dB(A) and by frequency band, from 125 to 4,000 Hz minimum. This spectral analysis makes it possible to detect tonal components – whistling, characteristic humming – which aggravate the perception of local residents and are subject to an additional regulatory penalty. The data collected is processed using certified acoustic processing software, then compared with the limit values of the prefectoral decree to identify actual non-compliance, period by period and measurement point by measurement point.
Acoustic imaging: locating sources with precision
On a multi-source site, global acoustic measurement is not enough to identify the dominant equipment. Acoustic imaging, using a 48-microphone antenna, produces a map of emissions superimposed in real time on the filmed equipment. This technology makes it possible to visualize precisely which machines or infrastructures are radiating the most at a given moment, by distinguishing between nearby sources of comparable levels.
Acoustic imaging results complement and correct initial hypotheses. Suspected sources can be ruled out, while others, not identified a priori, turn out to be dominant. At the cement plant in question, imaging confirmed the contribution of unanticipated sources and ruled out certain equipment initially designated as a priority. Without this tool, treatment budgets would have been directed at the wrong targets.
3D modeling and prioritized action plan

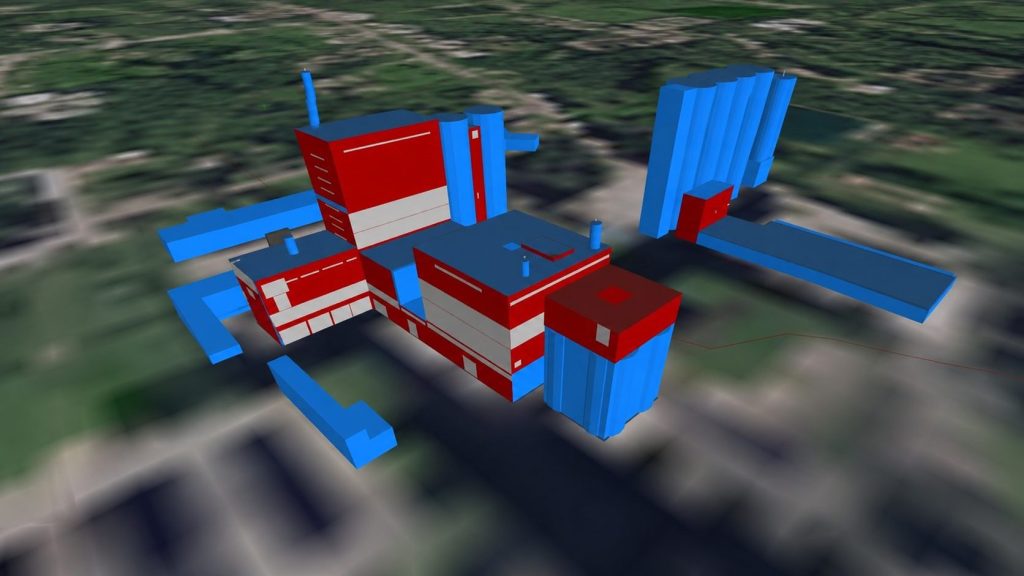

Once the sources have been characterized by measurements and imagery, acoustic simulation using three-dimensional modeling is used to quantify the contribution of each source to the levels measured at the site boundary and in the ZERs. The numerical model incorporates terrain topography, buildings and obstacles, the acoustic characteristics of each piece of equipment and propagation conditions. It can be used to simulate the expected gains for each treatment scenario – enclosure, screen, process modification – before any budgetary commitment is made.
This acoustic modeling phase is decisive in building an operational action plan. Noise reduction solutions are prioritized according to their expected acoustic gain/investment cost ratio. The work program is sequenced to ensure that regulatory objectives are met in the most effective order. The summary acoustic report produced at the end of this stage is a document that can be forwarded directly to the project manager, and can be used in discussions with the inspectorate for classified installations.
The acoustic engineering firm’s approach
SIM Engineering intervenes on complex industrial sites with a four-phase approach: regulatory environmental measurements in compliance with standard NF S 31-010, multi-microphone acoustic imaging for precise source location, 3D sound propagation modeling to quantify contributions and simulate scenarios, then development of a prioritized, operational action plan.
This integrated methodology – combining acoustic measurements in the field, imagery and numerical modelling – avoids the most common pitfall at multi-source ICPE sites: investing in ill-targeted treatment work. On a complex industrial site, a noise reduction program undertaken without precise prior localization represents a significant financial risk, which can reach several hundred thousand euros for no or partial regulatory results. Post-work acoustic monitoring, carried out according to the same standardized protocol, enables us to attest to the authorities that the site has been effectively brought into compliance.
Conclusion
On a multi-source ICPE site, acoustic compliance is not achieved by empirical work, but by a rigorous approach: regulatory measurements, location imagery, contribution modeling and a prioritized action plan. This sequence ensures that every euro invested produces a real, measurable regulatory gain. SIM Engineering, an acoustics consultancy specializing in industrial acoustics, supports HSE managers and ICPE operators from the initial analysis through to acceptance of work. For any acoustic non-compliance situation on an industrial site, contact SIM Engineering for a diagnosis tailored to your regulatory constraints.
